FEATURES
& BENEFITS
|
◆ High contaminant holding capacity
◆ Longer life service
◆ Low pressure drop
◆ Micro straining melt-blown filtration fiber, high removal rating
|
Strong Construction
◆ PP series cartridges, self-bonded with no chemical binder.
◆ Multi-Layer structure (fibers fineness varying from inner to
outer of the filter.)
◆ Cartridges structure and progressively loose from inside to outside,
so the cartridges contaminant catching capacity increased and the
lifetime is prolonged.
|
PP Series Safety
◆ F.D.A compliant
◆ Chemical resistance: 100% polypropylene for compatibility with
a wide range of process fluids, and good chemical resistance acid. |
APPLICATIONS |
Commercial |
◆ Pre-filter of drinking water treatment system
◆ Pre-filter of reverse osmosis
system and others water filter system
|
Industry |
◆ Oil removal industry
◆ Food and beverages industry
◆ Photographic industry
◆ Pharmacy industry
◆ Electroplating, etching and
image development processes
in PCB industry.
◆ Filtration of electroplating fluid in
conventional electroplating industry.
◆ Pre-filter of DI & RO water filtration
system for industry.
◆ Filtration of media & low viscosity
fluids of chemical.
◆ Filtration of water for manufacturing
processes and recycled water.
|
OPERATION CONDITIONS |
Maximum Operation Pressure Drop |
21℃=5.0Kg/cm2 |
MATERIALS |
100% polypropylene, melt-blown
thermal bond fiber. |
SPECIFICATIONS |
nominal 1, 5, 10, 20, 30,
50, 75, 100 micron |
SPECIFICATION |
Inner diameter : 28mm,30mm
Outer diameter : 40mm～115mm
Length : 125mm～1270mm |

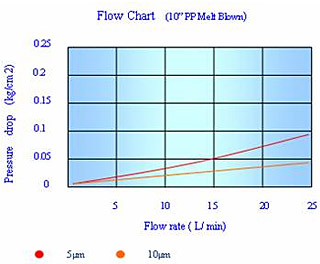

FLOW CHART |
 |
