String wound water filter cartridges offer true depth filtration with high dirt holding capacity and extremely low media migration. It is manufactured using a high speed, continuous wind process which creates a superior one-piece filter with hundreds of diamond shaped tunnels that get progressively smaller from the outer diameter to the core. Finer particles are progressively trapped as fluid travels to the center of the filter allowing for much greater retention capacity than that which is associated with straight surface filter media of the same dimensions and porosity.
FEATURES |
＃ Greater solids holding capacity
＃ Longer service life
＃ Low pressure drop
＃ Temperature and chemical compatibility
＃ Wide choices of specification, lengths and diameters
＃ True depth filtration. |
APPLICATIONS |
＃ Reverse osmosis Water
purification system
＃ Drinking water filter system
＃ Chemical Processing
＃ Pharmaceutical
＃ Electronics / Plating
＃ Coatings |
＃ Magnetic Coatings
＃ Photo Emulsions
＃ Food and Beverage
＃ Photo Processing
＃ Oil Patch |
OPERATION &
CONSTRUCTURE |
Filter Media |
Inner Core |
Operation Pressure |
Temperature |
Polypropylene |
Polypropylene |
<=0.5Mpa |
60≧-70≧ |
Polyester |
Polypropylene or Stainless Steel |
<=0.5Mpa |
110≧-120≧
|
Cotton |
Stainless Steel |
<=0.5Mpa |
120≧-140≧ |
MATERIALS |
＃ Polypropylene, Polyester, Cotton |
RETENTION
RATINGS (μ m) |
＃ Nominal 1, 5, 10, 20, 30, 50, 75, 100 μm |
SPECIFICATION |
＃ Inner diameter: 28mm, 30mm
＃ Outer diameter: 40mm-115mm
＃ Length: 120mm-1270mm |

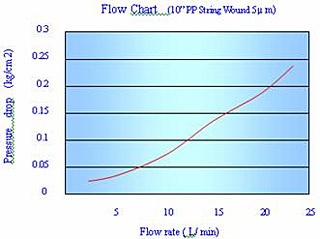

FLOW CHART |
|
|
